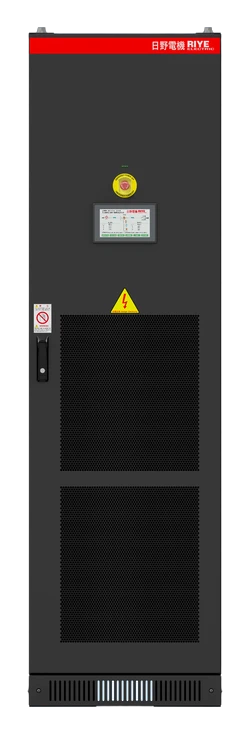

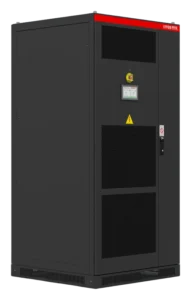

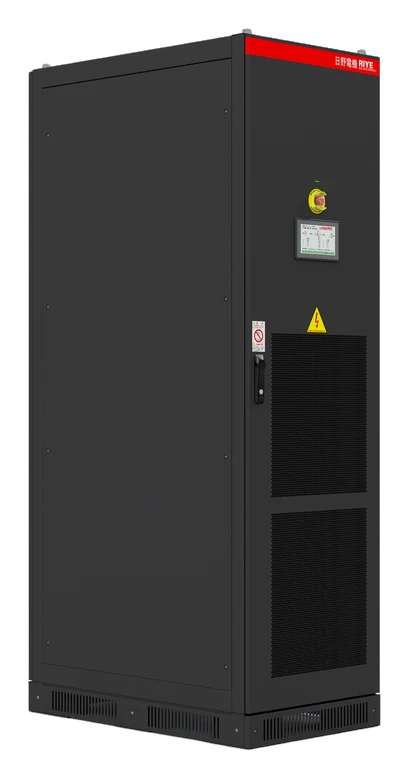

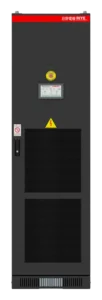

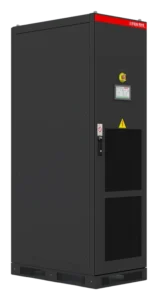

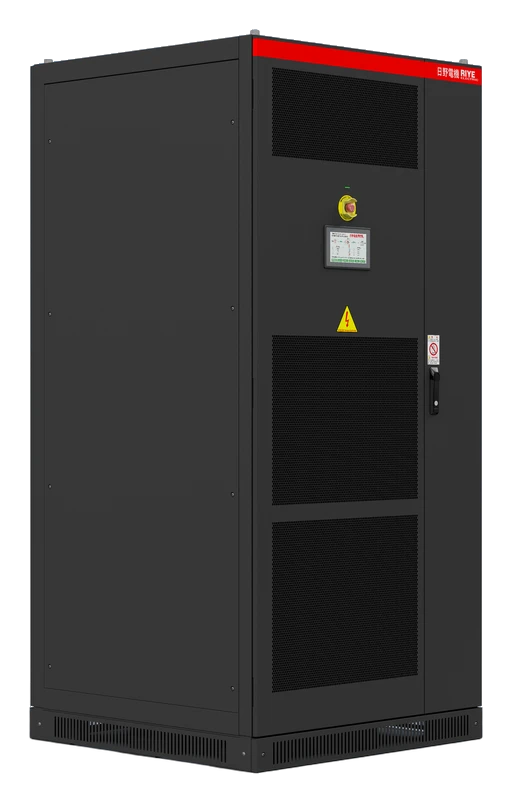

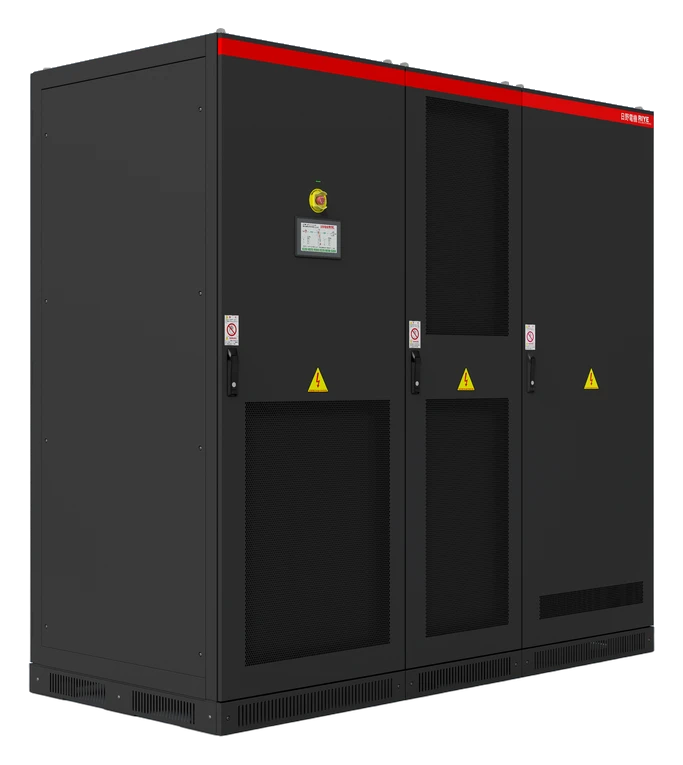

Active Voltage Conditioner AVC Series
Model： AVC
Active voltage conditioner that keeps voltage within 90~110% and compensates sags down to 60% input, 30~3000 kVA.
- 30~3000 kVA
- Efficiency >99% (avg.)
- Regulates within 90~110%
- 100% output at 60% input
Specifications
| Item | Value |
|---|---|
| Capacity | 30~3000 kVA (voltage and capacity customizable) |
| Conditioning range | 90~110% of rated voltage |
| Compensation | 100% output at 60% rated input voltage (3 phase example) |
| Efficiency | >99% (average) |
| Service life | More than 20 years |
| Bypass | Manual bypass |
| Factory tests | Voltage insulation, open circuit, high frequency, output adjustment and regulation tests |
| Quality system | ISO 9001:2015 |
| Response time | 2 ms (approx. 0.1 cycle) |
Applications
- Electronic factory
- Panel factory
- Semiconductor fundry
- Semi packaging and testing factory
- Power equipment
- Construction engineering equipment
- Large electrical equipment
- The place where electric regulation is needed
Capacity
- 30~3000kVA(voltage,capacity can be customized)
Product Features
Our product can handle the sag and swell effectively and react immediately.
Certificate
We have passed the ISO9001:2015 certificate , and we believe the certificate speak for themselves.
Elegant product appearance design ,and is suitable to install in each high-tech factory.
Highest efficiency
Our equipment adopts the edge cutting design of materials , and the power loss is low . Our equipment do not have the component that results in more heat loss , and the equipment itself almost has no heat loss . The main loss is from iron / cooper loss and from control circuit .The efficiency of energy conversion can be up to more than 99%(average),that is why our equipment can be more efficient than others.
Wide range of conditioning
The voltage condition will react automatically while the input voltage in the range between 90~110% rated voltage , the special type also can be designed case by case.The output voltage can be 100% adjusted(take 3 phase for example) while 60% rated voltage.
Large capacity design
Our equipment can be designed as the large capacity voltage condition system , so far the type can be designed up to 3000kVA
High safety
The structure characteristics of our product are under strict quality control and before leaving the factory，all of our products will go through the voltage insulation test、open circuit test、high frequency test、output adjustment and voltage regulation test to make sure the best quality and safety.
Bypass function
In case the equipment need to be maintained or any malfunction happens,you can switch the〝Bypass〞 manually to make sure normal operation .While abnormal release, you can switch manually from the〝Bypass〞to〝AVC〞.
Protection design to avoid from electric shock
All of our components inner and external have clear caution and nameplate.For the high voltage and dangerous components ,we take measures(for example,proper insulation and caution) to avoid from electric shock.
Friendly dashboard design
Our equipment adopts friendly design for user ,they can understand the status of the system easily while voltage regulation system is working by the dashboard.
Long durability、easy to use and convenient to maintain and repair
Our best design allows automatic process while the procedure of voltage regulation , and make sure regulator can go smoothly.The special structure design allows our AVC system to operate in severe environment condition .It is suitable for long term operation , and durable year can be more than 20 years.
