Dry type Transformer

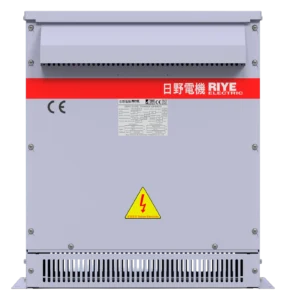

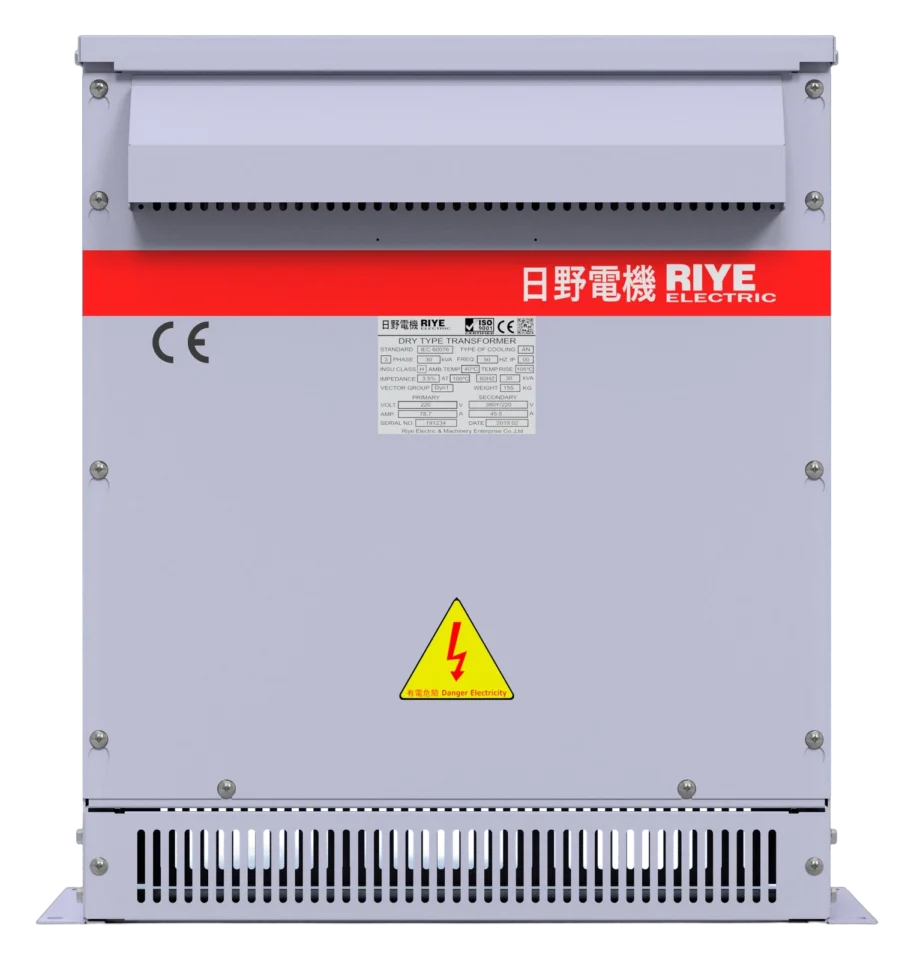

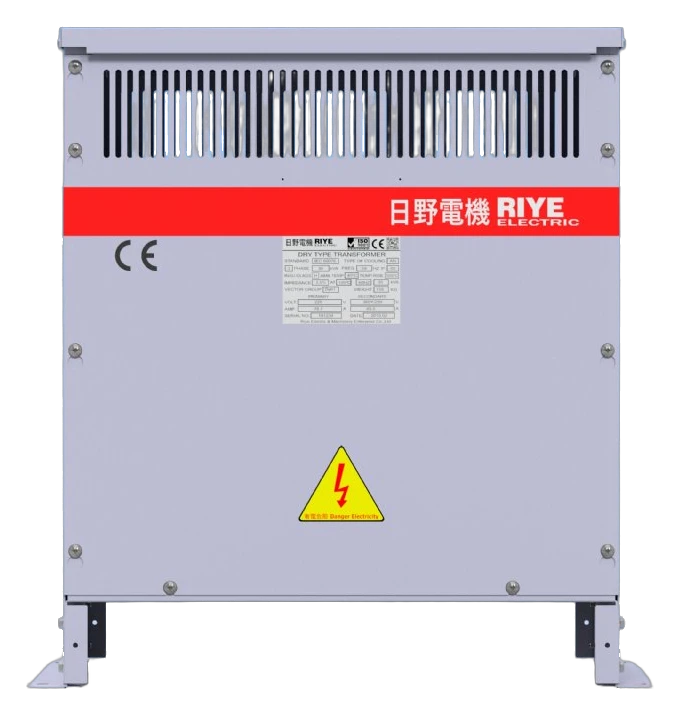

Dry Type Transformer IP20 Standard Type Enclosure SY/EY/TY/FY Series
Model： Dry Type Transformer IP20 Standard Type Enclosure SY/EY/TY/FY Series
A classic standard—the most solid safety foundation for indoor power distribution.
- IP20 standard protection
- Rugged floor-standing
- Louvered cooling
- Easy maintenance
Specifications
| Item | Value |
|---|---|
| Protection Rating | IP20 |
| Mounting | Floor-standing |
| Cooling | Self-cooled (AN) / optional forced-air cooling (AF) |
| Material | Anti-rust treated steel sheet |
| Voltage level | 600V or below |
| Single phase | 3~150 kVA |
| Three phase | 3~500kVA |
Applications
- Building distribution rooms
- Factory substations
- Hospital M&E rooms
- Indoor switchboard areas of large data centers
- Machinery equipment
- IC Semiconductor
- SMT/PCB electronic assembly
- Internet communication system
- Military control system
- Data processing system
- Automatic testing system
- Safety monitoring system
- Precision measurement system
- Chemistry instrument
- Laboratory equipment
- Medical equipment
- The place where electric regulation is needed
Capacity
- Voltage level: 600V or below
- Single phase: 3~150 kVA
- Three phase: 3~500kVA
- Our series are complete and are able to customize.
Product Features
- High load-bearing structure: Classic floor-standing design with a reinforced base that securely supports the weight of medium and large transformers.
- Excellent thermal management: Equipped with standard convection louvers, with optional forced-air cooling fans (AF) to suit site needs and prevent overheating.
- Inspection-friendly design: Large removable or hinged service doors make future inspection, maintenance and wiring extremely convenient for engineers.
- Certificate: Our whole series have passed the CE certificate.
- ISO9001:2015: We have passed the ISO9001:2015 certificate , and we believe the certificate speak for themselves.
- The coil adopts outstanding H class insulation material and have the remarkable characteristics of high degree endurance、low noise、fire prevention、avoid electric shock、non absorbency
- When the environment degree is under the circumstance of 40 ℃ and average degree below 35,under rated capacity and rated frequency，the operation can meet the H class insulation(Up to 180℃)
- Our product is easy to install and repair，and the product has small size and light weight.It can be installed in where the space is not sufficient enough and can also install in switchboard or control panel.
