Cast Resin Transformer

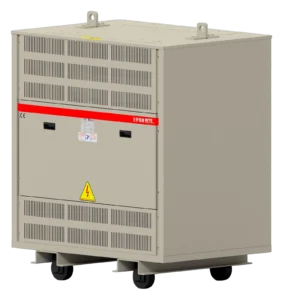

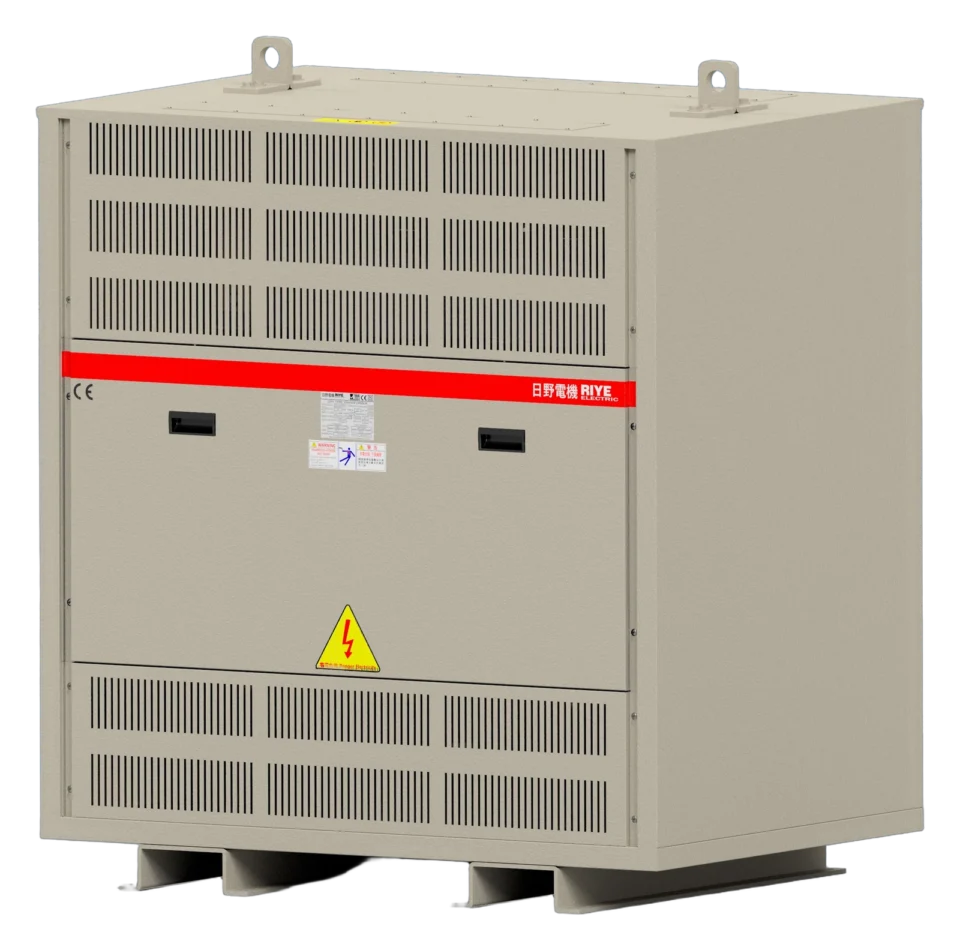

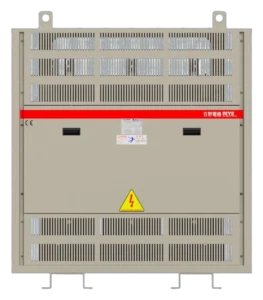

Three phase Cast Resin High Voltage Distribution Transformer
Model： Three phase Cast Resin High Voltage Distribution Transformer
Clad in protective armor—even HV distribution can be installed on the floor with confidence.
- IP20 HV enclosure
- Single/three-phase options
- Upgraded touch-safe protection
- Forced-cooling expandable
Specifications
| Item | Value |
|---|---|
| Phase | Single phase / three phase (by model) |
| System Voltage | High-voltage primary |
| Protection Rating | IP20 (louvered ventilation design) |
| Enclosure Material | Anti-rust treated high-strength cold-rolled steel |
| Voltage level | 3.3,6.6,11,22,33kV or below |
| Three phase | 3~3000 kVA |
Applications
- Industrial sites without dedicated HV isolation rooms
- Mine/tunnel HV distribution stations
- Independent HV pumping stations or heavy-equipment supply points
- Machinery equipment
- Hospitals
- Department stores
- Supermarkets
- Hotels
- Underground shopping streets
- Sewer systems
- Tunnels
- Electrified railways
- Steel plants
- Food factories
- Chemical plants
- High-tech electronics factories
- Other special sites or public buildings
Capacity
- Single Phase kVA Sizes : 5,7.5,10,15,20,30,37.5,50,75,100 kVA
- Three Phase kVA Sizes : 5,7.5,10,15,30,50,75,100,112,125,150 200,225,300,400,500,600,750,1000 1250,1500,1750,2000,3000 kVA
- Voltage level : 36kV/24kV/12kV or below
Product Features
- Physical safety barrier: Comes standard with a high-strength IP20 metal enclosure that strictly prevents personnel or foreign objects from touching live HV parts, greatly improving on-site safety.
- Flexible phase options: Available in both single-phase and three-phase versions to meet diverse needs from HV main supply networks to special single-phase heavy loads.
- Reserved overload expansion: The enclosure supports natural-convection cooling with space reserved for forced-air fans (AF), allowing quick upgrades if future plant expansion requires overload operation.
- Our product with IP20 protection, best customized enclosure design that can meet all your demand.
- Mold Cast Resin Transformer are made by resin vacuum casting for indoor application
- In accordance with standard IEC or the national standards of each country
- Power capacity: According to the recommendation of each country's national standards
- Temperature based on IEC726
- High voltage winding: F class
- Low voltage winding: F class
- Bottom entry gland plates for HV & LV terminations
- Naturally cooled(AN)
- Tap changer(Manual links)
- Maintenance free
- Cost saving
- Fire resistant
- Short circuit resistant
- Fewer failures
- Impulse voltage strength
- Thermal shock resistant
- Environmentally safe
- Low noise
- Compliant to IEC 726
- ISO 9001-2015 Quality system authenticated
- Made in Taiwan
- Warranty:1 year
Specification
- Single Phase kVA Sizes : 5,7.5,10,15,20,30,37.5,50,75,100 KVA
- Three Phase kVA Sizes : 5,7.5,10,15,30,50,75,100 112,125,150,200,225,300,400,500,600 750,1000,1250,1500,1750,2000,3000kVA
- Voltage level : 36kV/24kV/12kV or below
Safety/Quality Approvals
- Built in accordance with CNS,EN,IEC726,BS-171 standards
