Cast Resin Transformer

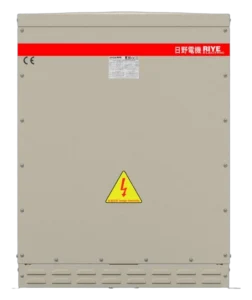

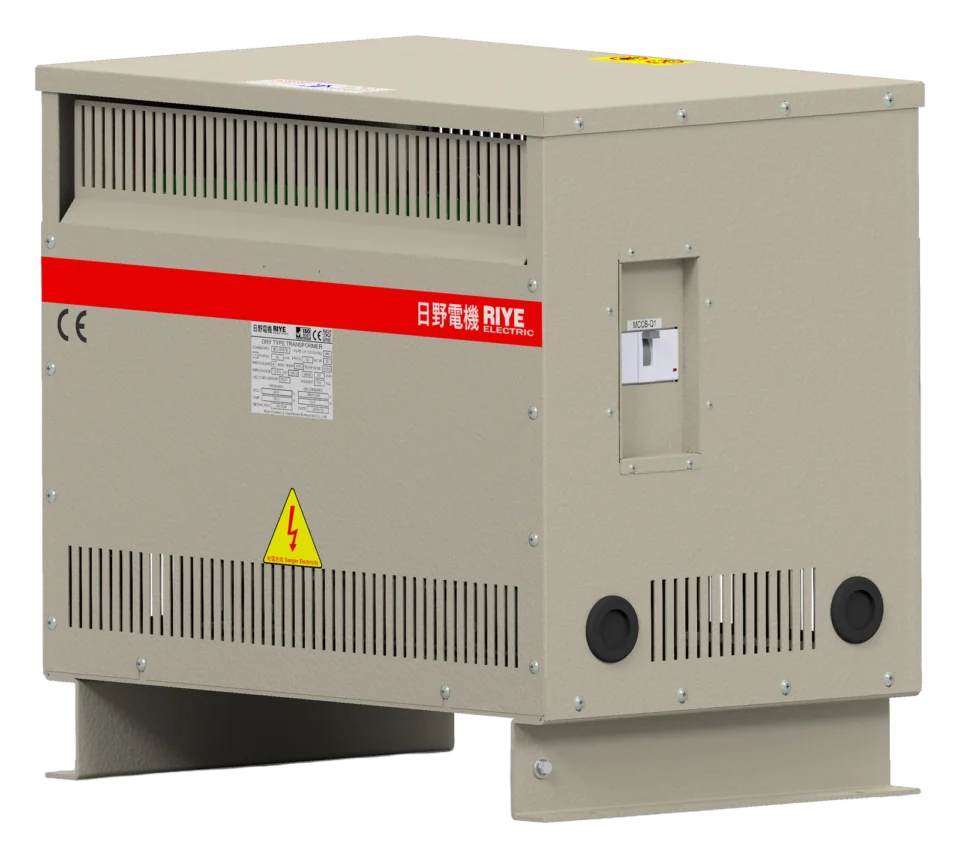

Single phase/Three phase Cast Resin Low Voltage Distribution Transformer
Model： Single phase/Three phase Cast Resin Low Voltage Distribution Transformer
Comes with its own protective enclosure—the indoor safety upgrade for cast resin transformers.
- Single/three-phase options
- IP20 shock protection
- High-grade cast-resin insulation
- Neat look, easy placement
Specifications
| Item | Value |
|---|---|
| Phase | Single phase / three phase (by model) |
| Protection Rating | IP20 (ventilated mesh enclosure) |
| Cooling | Self-cooled (AN) / optional forced-air fan cooling (AF) |
| Enclosure Material | Painted cold-rolled steel |
| Voltage level | 600V or below |
| Three phase | 3~ 500kVA |
| Single phase | 3~150 kVA |
Applications
- Office floors without dedicated electrical rooms
- General treatment areas in hospitals
- Distribution areas beside factory walkways
- School teaching buildings
- Machinery equipment
- Hospitals
- Department stores
- Supermarkets
- Hotels
- Underground shopping streets
- Sewer systems
- Tunnels
- Electrified railways
- Steel plants
- Food factories
- Chemical plants
- High-tech electronics factories
- Other special sites or public buildings
Capacity
- Single Phase kVA Sizes : 1 to 150 kVA
- Three Phase kVA Sizes : 3 to 500 kVA
- Voltage level : 600 V or below
Product Features
- Protection ready to install: Comes standard with an IP20 safety enclosure that can be floor-mounted directly in non-restricted areas, preventing unqualified personnel from touching high-voltage terminals.
- Flexible phase options: Available in both single-phase and three-phase versions to meet the needs of all kinds of end equipment such as lighting, air conditioning and dedicated machinery.
- Clean, modern appearance: The protective enclosure is simple with a smooth surface, easy to clean and blends into modern interiors, eliminating the cluttered look of open-type units.
- Mold Cast Resin Transformer are made by resin vacuum casting for indoor application
- In accordance with standard IEC or the national standards of each country
- Power capacity: According to the recommendation of each country's national standards
- Temperature based on IEC726
- High voltage winding: F class
- Low voltage winding: F class
- Bottom entry gland plates for HV & LV terminations
- Naturally cooled(AN)
- Tap changer(Manual links)
- Maintenance free
- Cost saving
- Fire resistant
- Short circuit resistant
- Fewer failures
- Impulse voltage strength
- Thermal shock resistant
- Environmentally safe
- Low noise
- Compliant to IEC 726
- ISO 9001-2015 Quality system authenticated
- Made in Taiwan
- Warranty:1 year
Specification
- Single Phase kVA Sizes : 3 to 200kVA
- Three Phase kVA Sizes : 3 to 1000 kVA
- Voltage level : 600 V or below
Safety/Quality Approvals
- Built in accordance with CNS,EN,IEC726,BS-171 standards
