Dry type Transformer

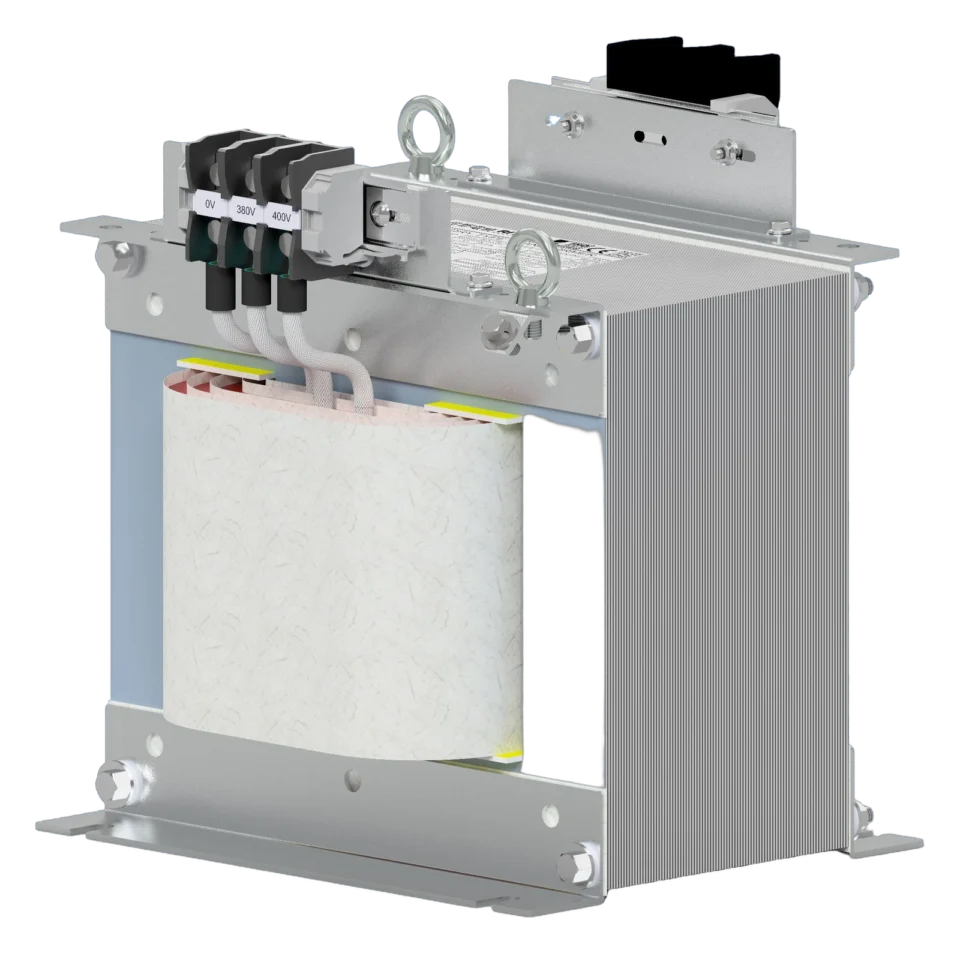

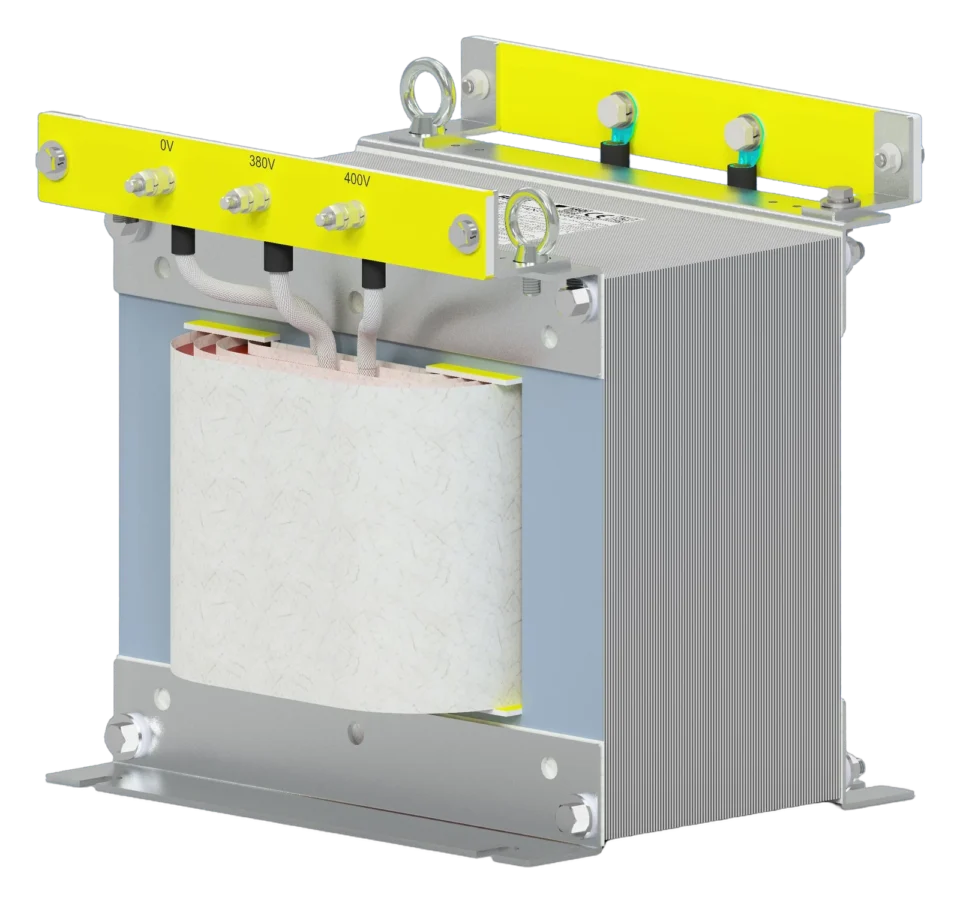

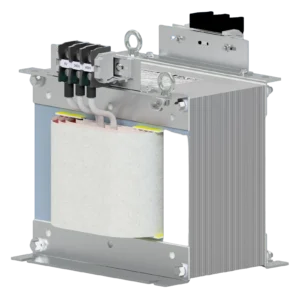

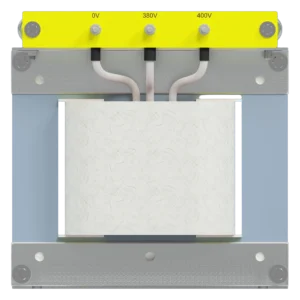

Single phase Dry Try Distribution Transformer IP00 Series
Model： Single phase Dry Try Distribution Transformer IP00 SZ/EZ/TZ/FZ Series
The standard solution for lightweight, practical, general-purpose single-phase power conversion.
- General-purpose standard design
- Outstanding cost-performance ratio
- Quiet, noise-free, durable
Specifications
| Item | Value |
|---|---|
| Enclosure rating | IP00 |
| Phase | Single-phase |
| Capacity | 3 kVA–300 kVA |
| Voltage level | 600V or below |
| Insulation class | Class H (up to 180℃) |
| Certification | CE, ISO 9001:2015 |
Applications
- Commercial lighting system power
- Small laboratory equipment
- Household large-load isolation (e.g., dedicated lines for high-end audio)
- General commercial space power conversion
- Machinery equipment
- IC semiconductor packaging / testing processes
- SMT / PCB electronic assembly
- Program-controlled switching communication networks
- Digital microwave communication networks
- Network communication systems
- Mobile phone network base stations
- Railway signal control stations
- Military instrumentation and control systems
- Data processing systems
- Automatic testing systems
- Safety monitoring systems
- Precision measurement systems
- Chemical engineering instruments
- Medical equipment
- Suitable for all kinds of low-voltage power supply sites
Capacity
- Voltage level: 600V or below
- Single phase: 3~300 kVA
- Complete product series; custom designs available for special customer requirements
Product Features
- Best value choice: Offers multiple economical and standard SZ/EZ/TZ/FZ models to achieve stable power at the most affordable cost.
- Rugged and durable: Strong structure and vacuum impregnation tightly bond the coils, resisting moisture and rust and extending product service life.
- Minimal maintenance: IP00 dry-type oil-free design eliminates ongoing oil maintenance costs—ready to install and use.
- Electrical safety certification: The entire series has passed EU CE certification.
- International quality certification: Certified to ISO 9001:2015, ensuring electrical safety.
- Windings are made of high-grade Class H insulation material and varnish impregnated, offering high heat resistance, low noise, acid and alkali resistance, fire resistance, protection against electric shock and non-absorbency.
- High mechanical strength withstands electromagnetic and mechanical stress caused by lightning, switching surges or short circuits.
- With ambient temperature of 40℃ and a daily average below 35℃, continuous operation at rated capacity and rated frequency meets Class H insulation (maximum allowable temperature rise 180℃).
- When ambient temperature is lower and the operating temperature does not exceed the Class H limit (180℃), overload operation is permissible.
- Easy to install and connect, with multiple mounting orientations; simple maintenance and inspection.
- Small size and light weight for easy shipping and space saving; suitable for installation inside switchboards or control panels.
