Dry type Transformer

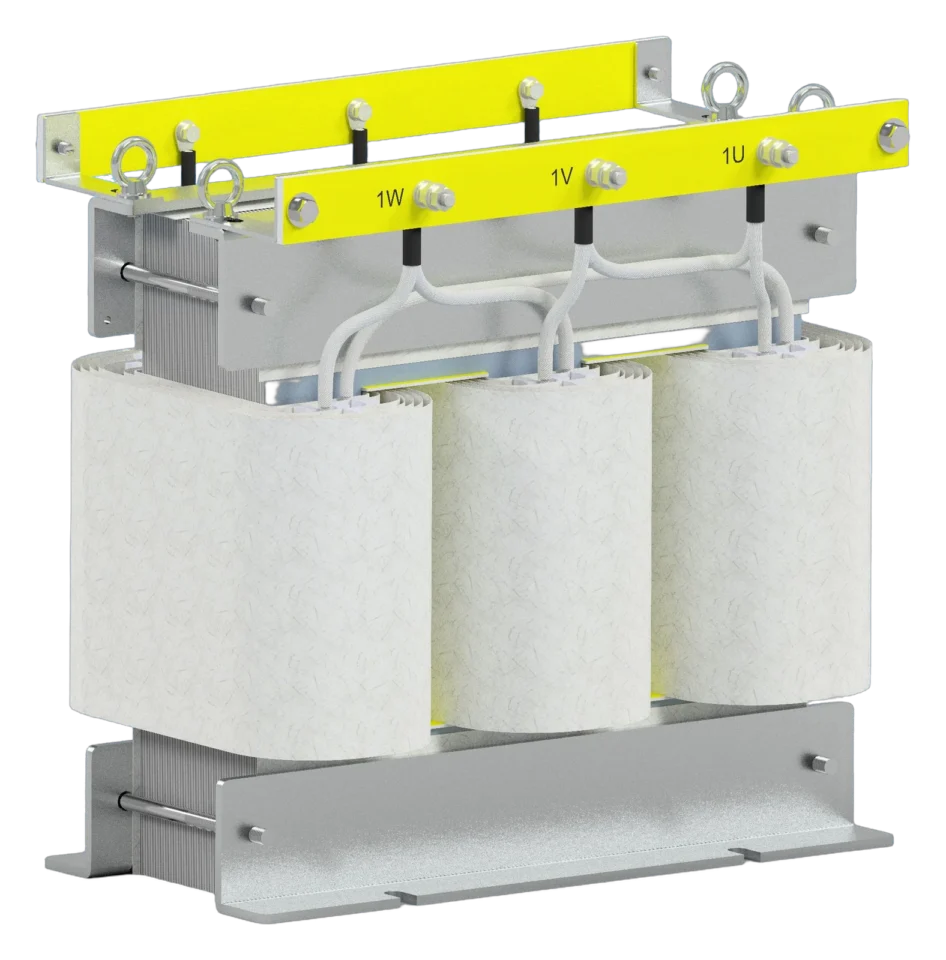

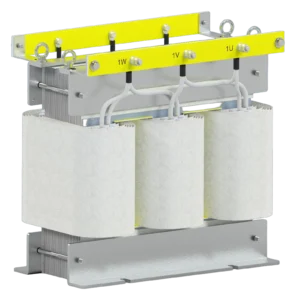

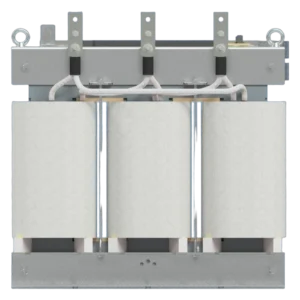

Three phase Dry type Distribution Transformer IP00 SZ/EZ/TZ/FZ Series
Model： Three phase Dry type Distribution Transformer IP00 SZ/EZ/TZ/FZ Series
Flexible multi-series options to meet the core needs of all types of industrial basic power distribution.
- Voltage level 600V or below
- Three phase 3~2500kVA
- H class insulation 180℃
- CE / ISO 9001:2015
Specifications
| Item | Value |
|---|---|
| Enclosure rating | IP00 |
| Input/Output Voltage Level | Customized as required (e.g., 380 V / 220 V) |
| Three phase | 3~2500kVA |
| Voltage level | 600V or below |
| Insulation class | Class H (180℃) |
| Continuous operation | Ambient 40℃, daily average below 35℃, at rated capacity and frequency |
| Certification | UL、CE、ISO 9001:2015 |
Applications
- Machinery equipment
- IC Semiconductor
- SMT/PCB electronic assembly
- Internet communication system
- Military control system
- Data processing system
- Automatic testing system
- Safety monitoring system
- Precision measurement system
- Chemistry instrument
- Laboratory equipment
- Medical equipment
- The place where electric regulation is needed
Capacity
- Voltage level: 600V or below
- Three phase: 3~2500kVA
- Our series are complete and are able to customize.
Product Features
- Certificate: Our whole series have passed the CE certificate.
- ISO9001:2015: We have passed the ISO9001:2015certificate , and we believe the certificate speak for themselves.
- The coil adopts outstanding H class insulation material and have the remarkable characteristics of high degree endurance、low noise、fire prevention、avoid electric shock、non absorbency
- When the environment degree is under the circumstance of 40 ℃ and average degree below 35,under rated capacity and rated frequency，the operation can meet the H class insulation(Up to 180℃)
- Our product is easy to install and repair，and the product has small size and light weight.It can be installed in where the space is not sufficient enough and can also install in switchboard or control panel.
