Saturation type Voltage Regulator

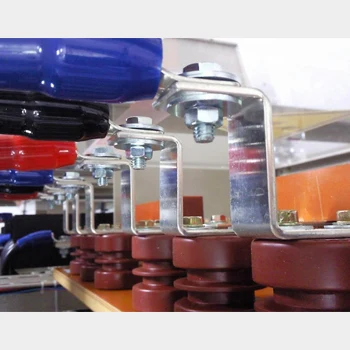

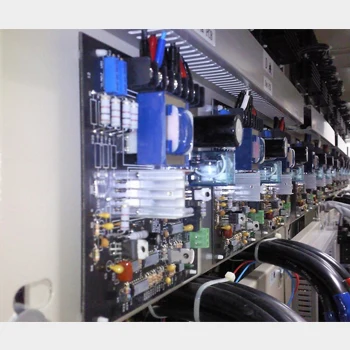

Saturation type Voltage Regulator SS/ES/TS/FS Series
Model： SS/ES/TS/FS
Ferroresonant saturation type voltage regulator with a shielded isolation transformer, ±15% input range and a typical efficiency of 95%.
- single phase 1~30 kVA
- three phase 3~200 kVA
- Ferroresonant technology
- Typical efficiency 95%
Specifications
| Item | Value |
|---|---|
| single phase | 1~30 kVA |
| three phase | 3~200 kVA |
| Single phase capacity | 1~30 kVA |
| Three phase capacity | 3~200 kVA |
| Technology | Ferroresonant |
| Input range | ±15% |
| Three phase configurations | Delta/Delta, Delta/Wye, Wye/Wye |
| Efficiency | Typical 95% (low impedance design) |
| Isolation | Shielded isolation transformer |
| Surge suppression | To ANSI/IEEE and IEC standards |
| Protection | Automatic over and under voltage protection |
| Bypass | Control circuit by-pass switch |
| Quality system | ISO 9001:2015 |
| Warranty | 1 year |
| Origin | Made in Taiwan |
Applications
- Automated Teller Machines(ATMs)
- Credit Card Authorization Machines
- Electrical Control Panels
- Equipment
- Factory Automation Equipment
- Factory AutomationProcess Control
- Fax Machines
- Film Processing
- Home Entertainment Systems
- Imaging Systems
- Industrial Controls
- Laboratory Equipment
- LANs
- Manufacturing and Testing
- Manufacturing/Process Controls
- Medical Equipment
- Microcomputers
- Mini/Mainframe Computers
- PBX Systems
- Photographic Equipment
- Point-Of-Sale Terminals
- Process Control
- RadioTtransmitters
- Remote Computer Peripherals
- Security Systems
- Sound Systems
- Spectrographs
- Test Equipment
- Work Processors
- Workstations
- TS Series
- Manufacturing Capacity
- single phase:1~30 kVA
- three phase:3~200 kVA
Product Features
- Input : wide range +/-15%with standard Delta/Delta,Delta/Wye and Wye/Wye three phase design
- Extremely tight voltage regulation available for sensitive loads
- Shielded isolation transformer
- Surge suppression to ANSI/IEEE and IEC Standards
- Ferroresonant technology
- Attenuates noise by shielded isolation transformer
- Rugged construction
- High overload capability
- Efficiency : Low impedance design with a typical efficiency of 95%
- Automatic over and under voltage protection
- Control circuit by-pass switch
- Modular design
- Low maintenance costs
- Optimal reliability,simple conception
- Enclosure design minimizes audible noise
- ISO 9001:2015 Quality system authenticated
- Made in Taiwan
- Warranty:1 year
